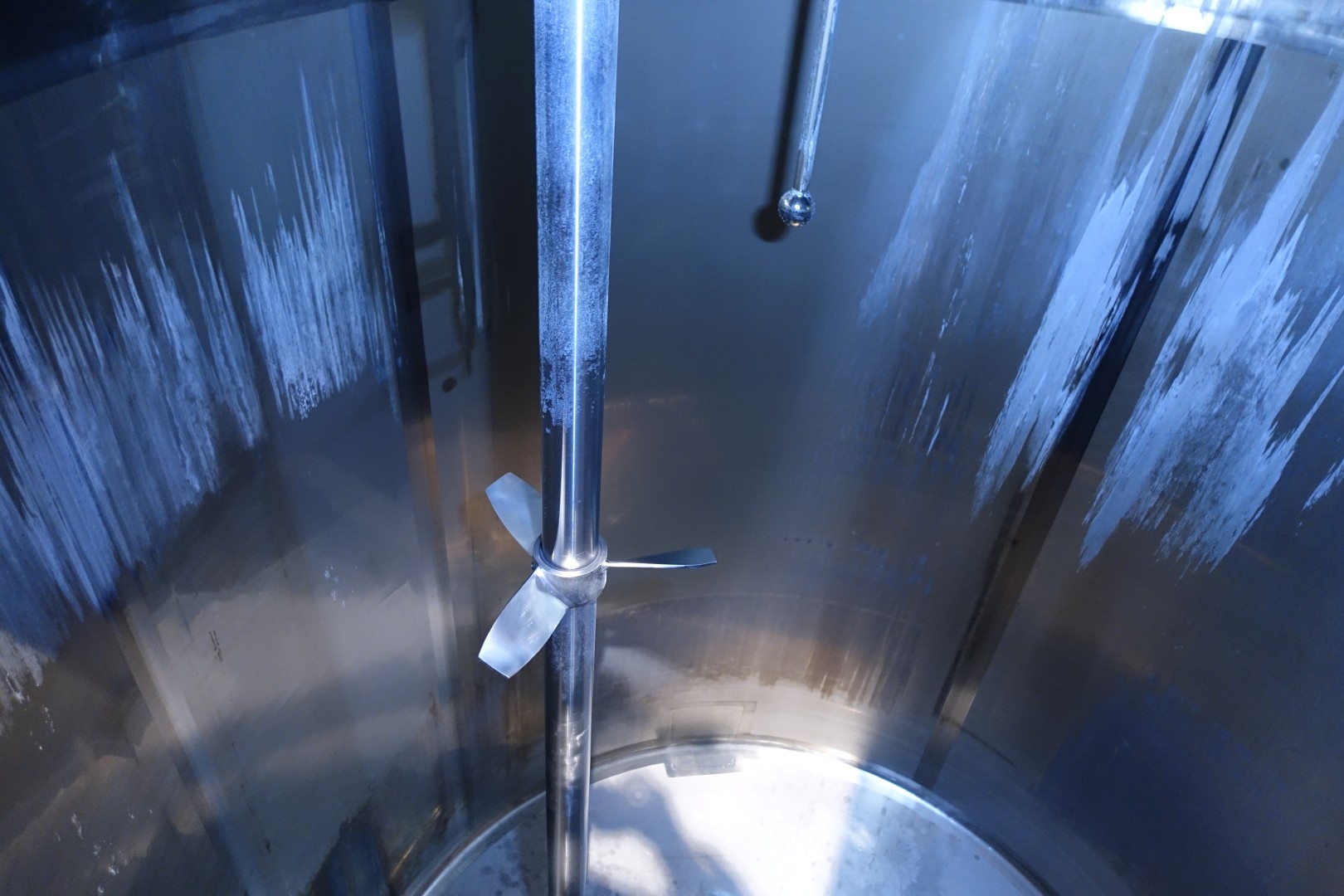

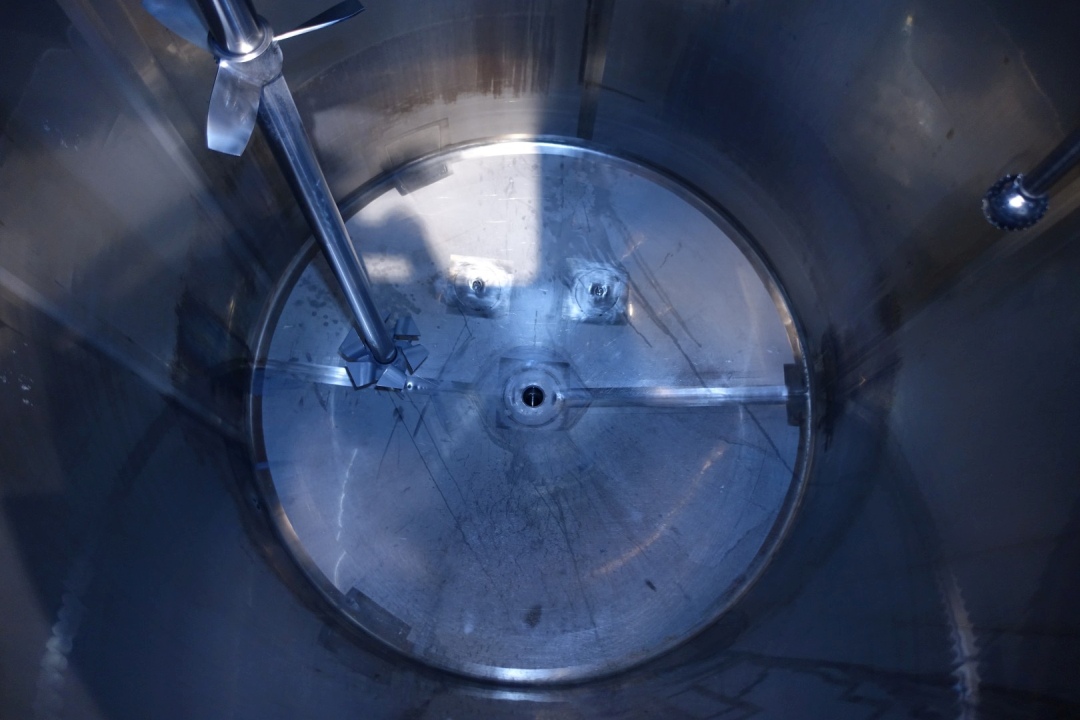

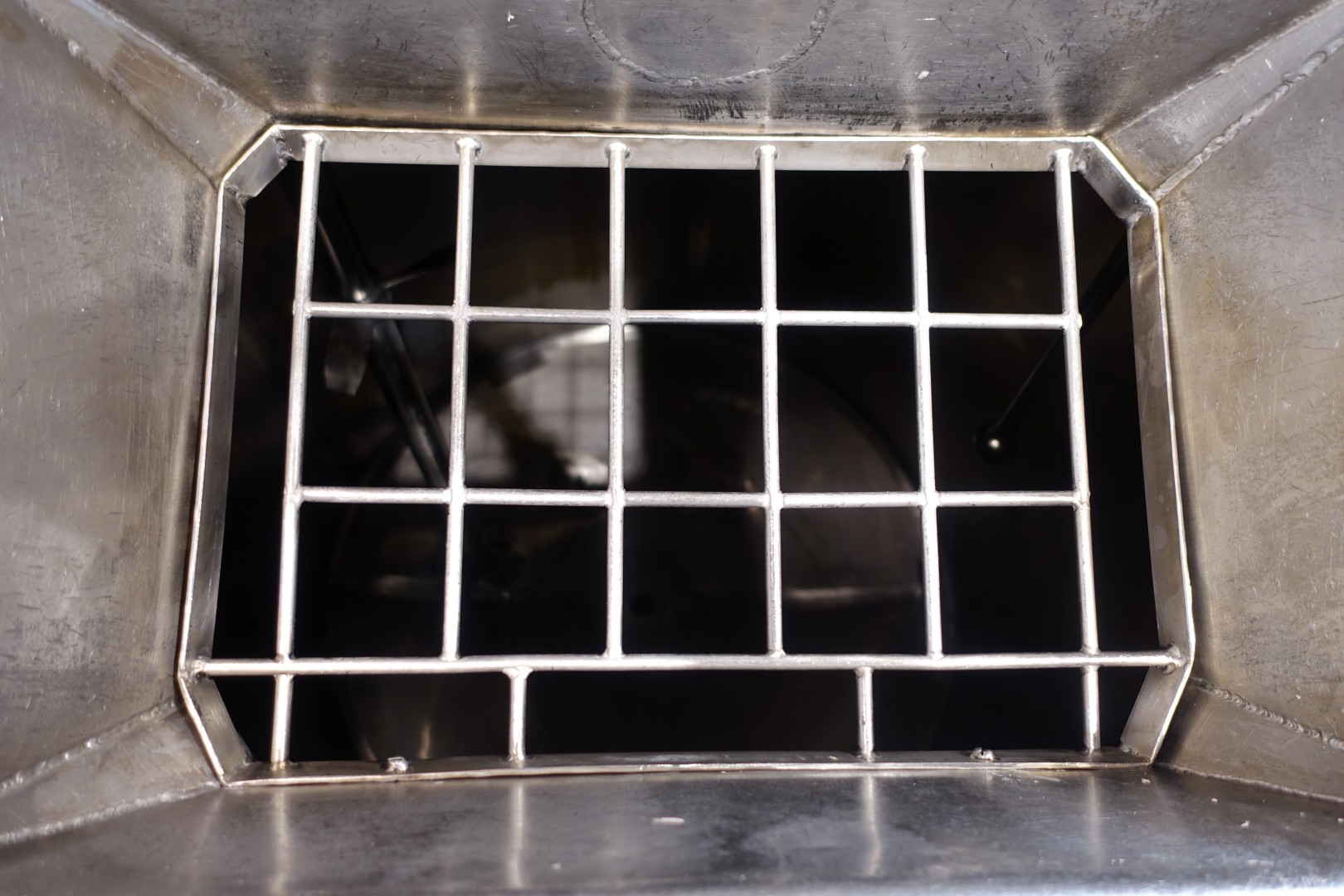

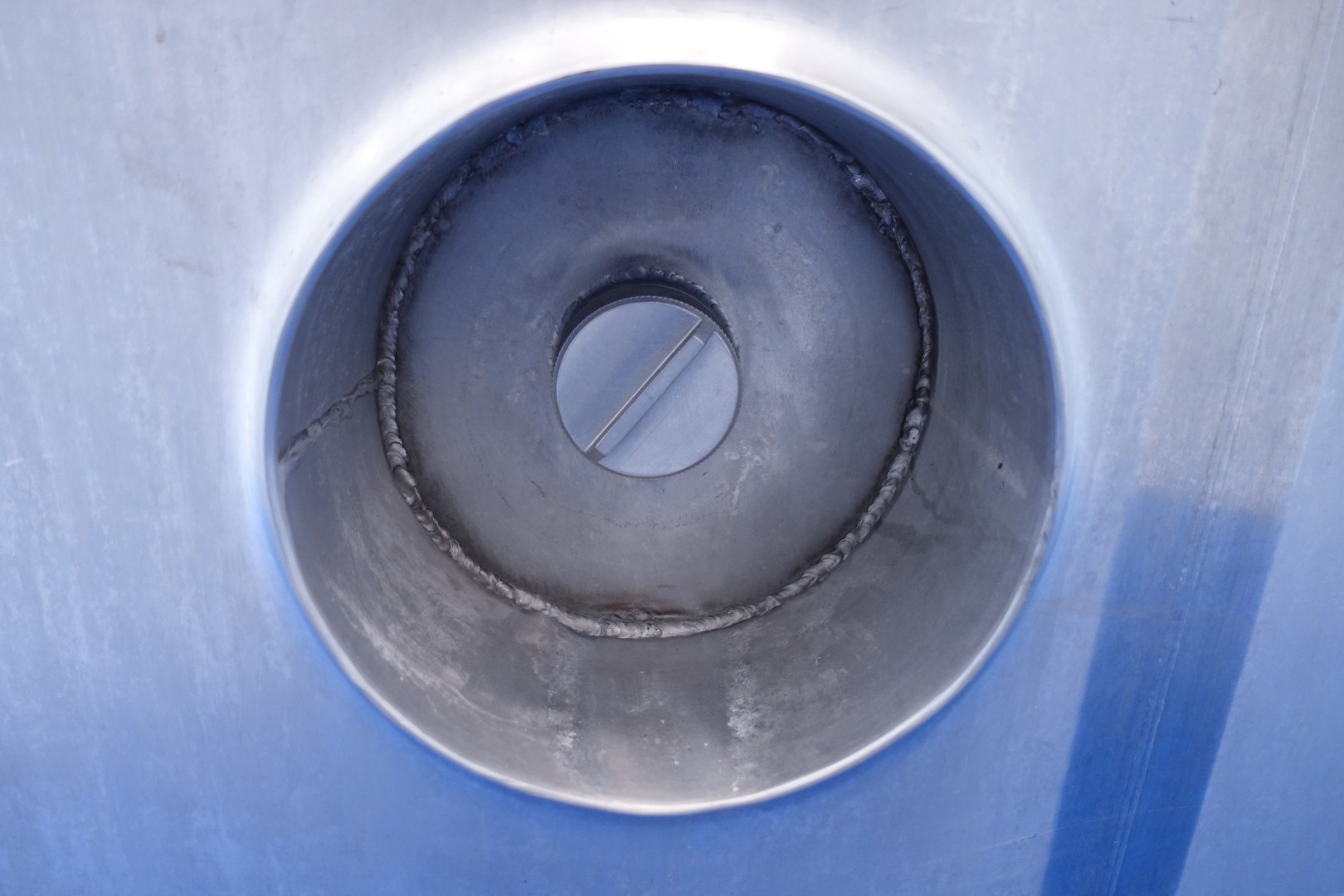

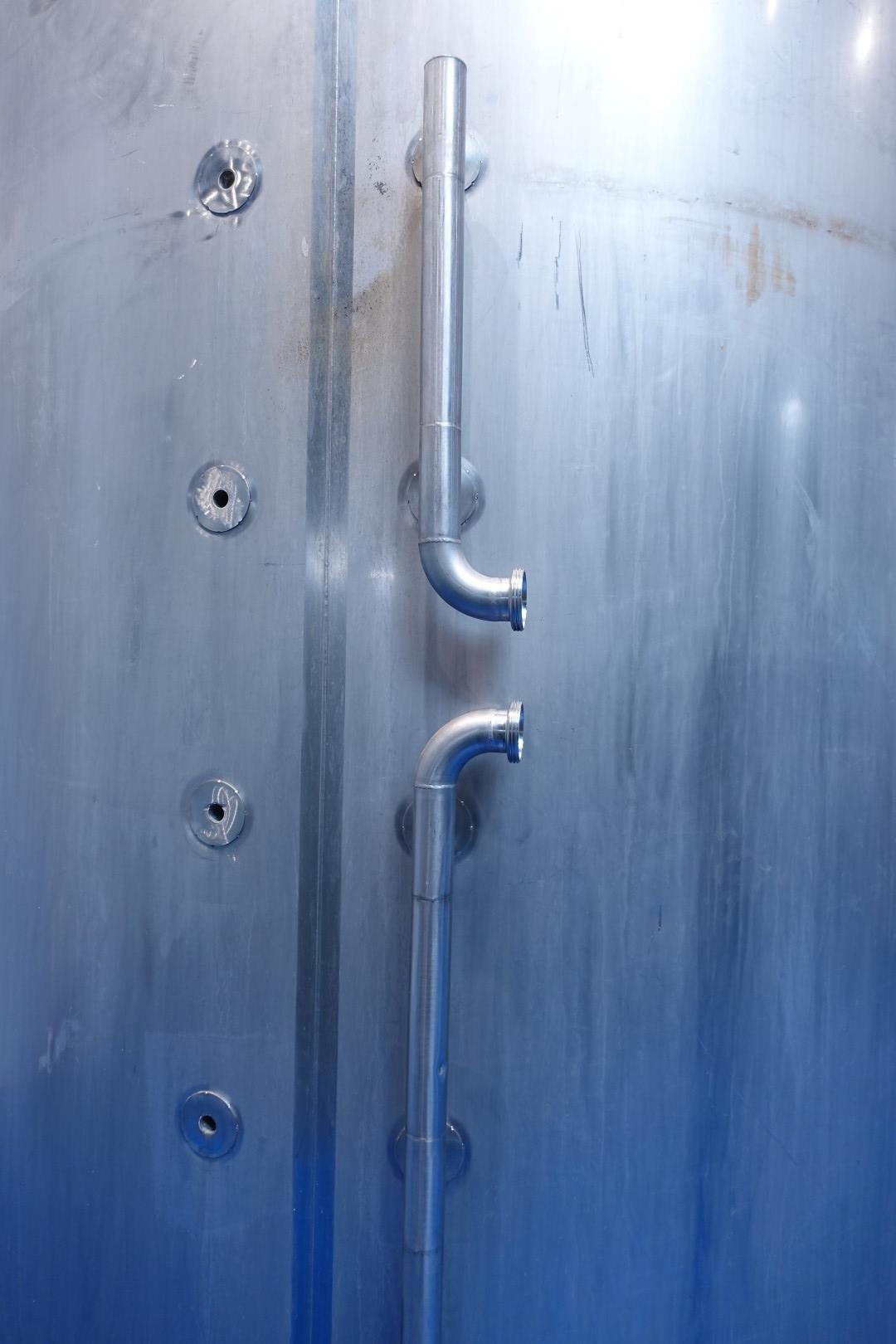

Mix and dissolve tank, double jacketed for heating or cooling. Top driven agitator with below mixer and half way a propellor. Motor power: 45 kW - 85 A - n1: 985 rpm. Working pressure in jacket: 3,5 bar. Insulated bottom. Product outlet DN80 Din, outlet height: 17 cm. Including pneumatic outlet valve. Lamp on top of tank. Sensors: high and low level sensor, Temperature sensor in bottom. With breather in top. 2 CIP spray bowls. Manhole/product infeed in top rectangular 49x33 cm. 3 Adjustable feet with 3 loadcells. Inside dimensions of tank: Ø 210 cm and cilindrical height 235 cm. Connections on side: 2 x 2" Din, Connections in top: 3x 1" Din - 1 x Flange - 1 x 2,5" Din. Originally fitted with Azo powder screw- feeder/doser with small hopper, alo available under stocknumber 15784. Total dimensions: 235x225x453 (lxwxh) cm - weight: 2.220 kg.
