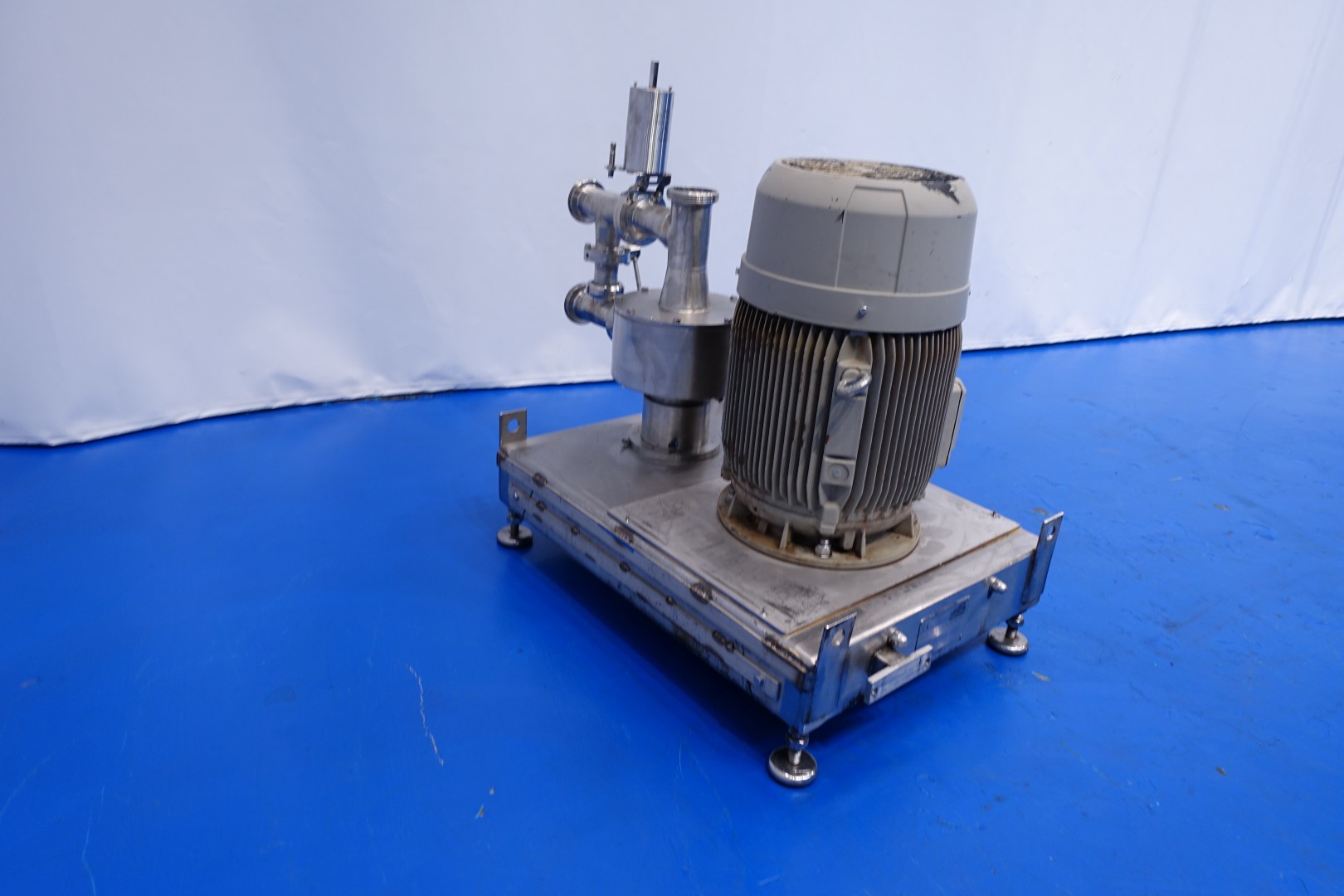

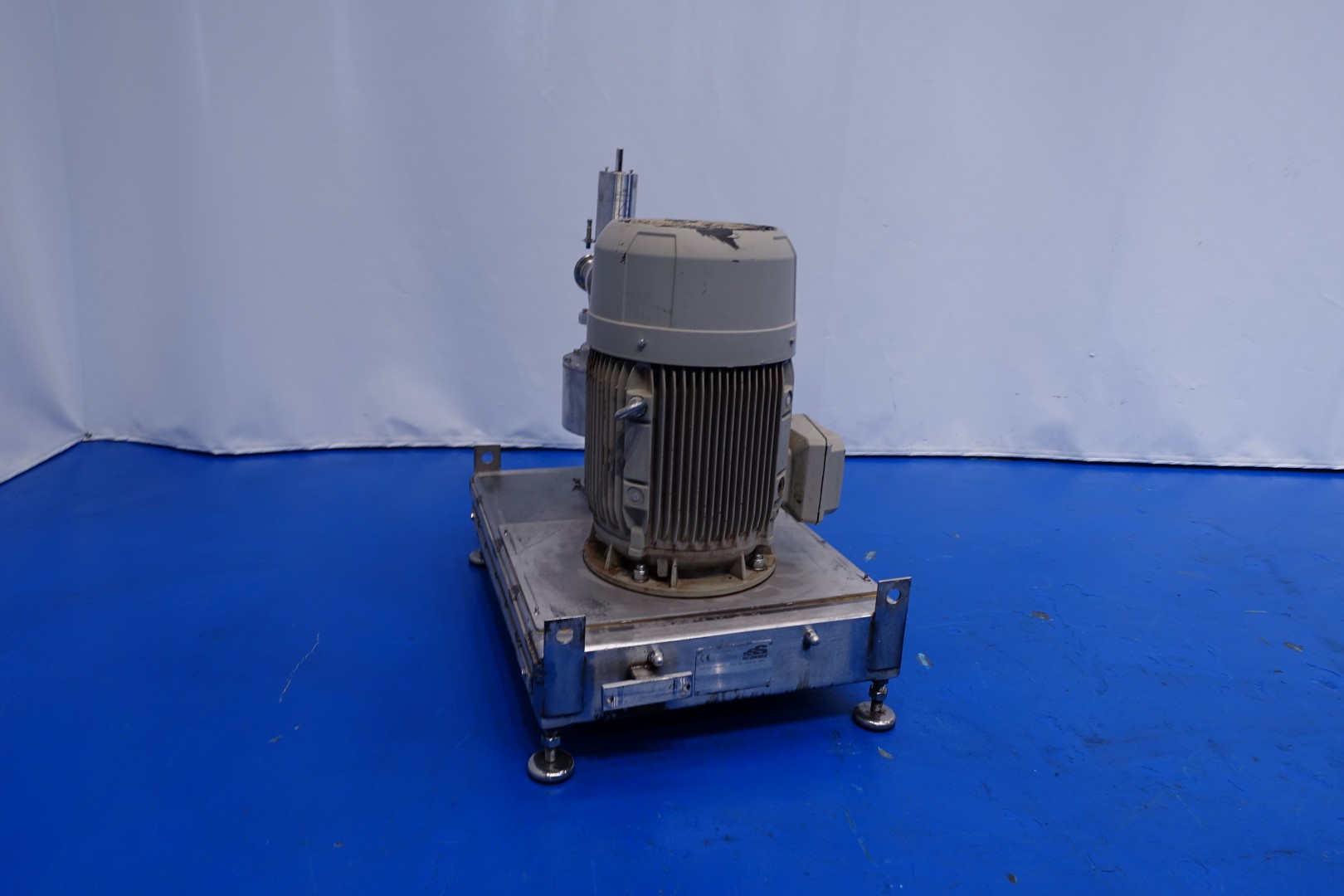

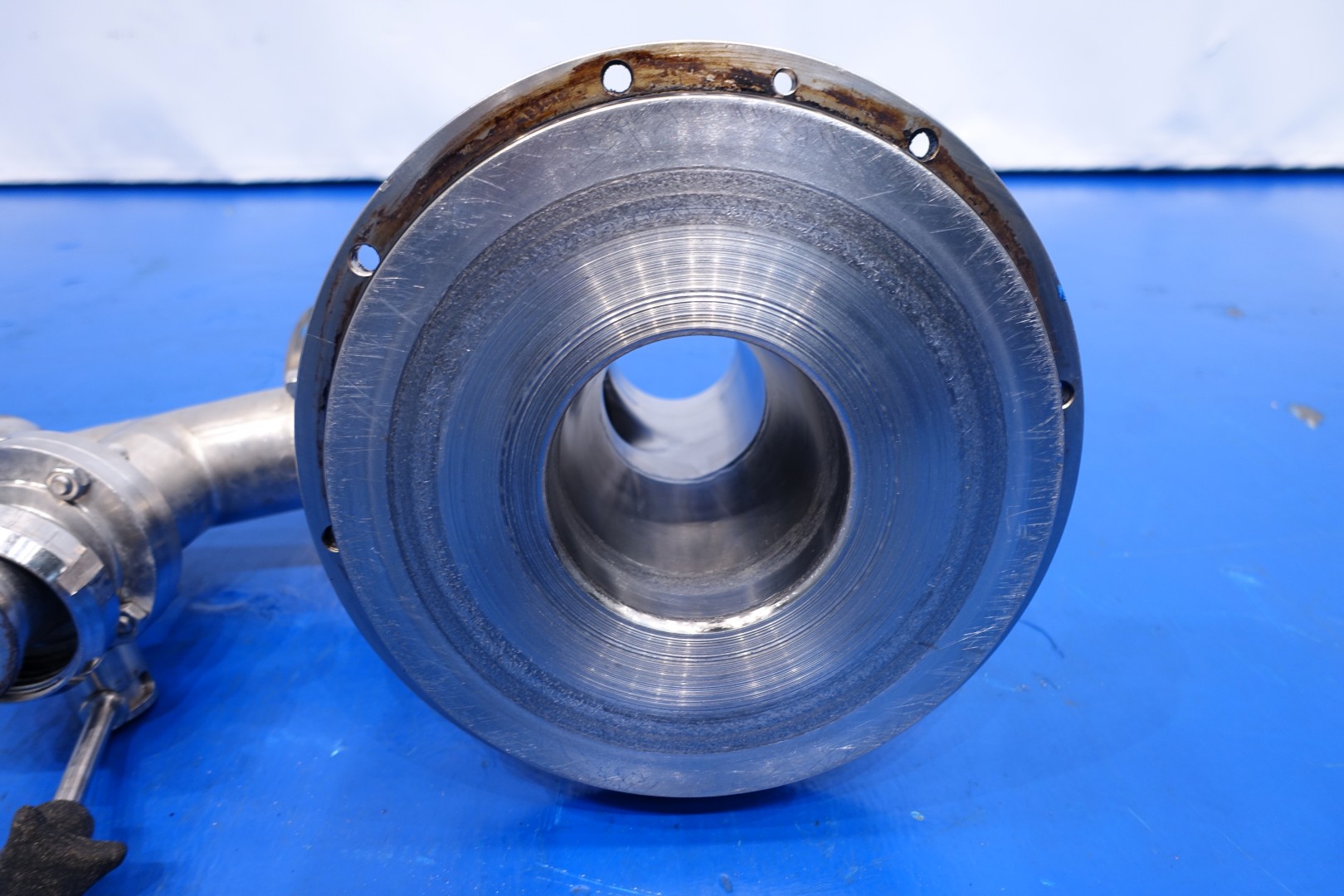

Inline high shear dissolver - dispergator mixer. Impellor diameter: 198 mm. Cilinder diameter: 200 mm, screen hole diameter 4 mm (height cilinder 78 mm). With manual recirculation bypass butterfly valve. Motor: 22,0 kW - 400 V - 38,5 A - 50 Hz - 2.950 rpm. Shaft speed: 2800 rpm. Flushed seal. Connections: 1x 3" SMS and 2x 2,5" Din. Total dimensions: 110x63x90 (lxwxh) cm - weight: 355 kg.
