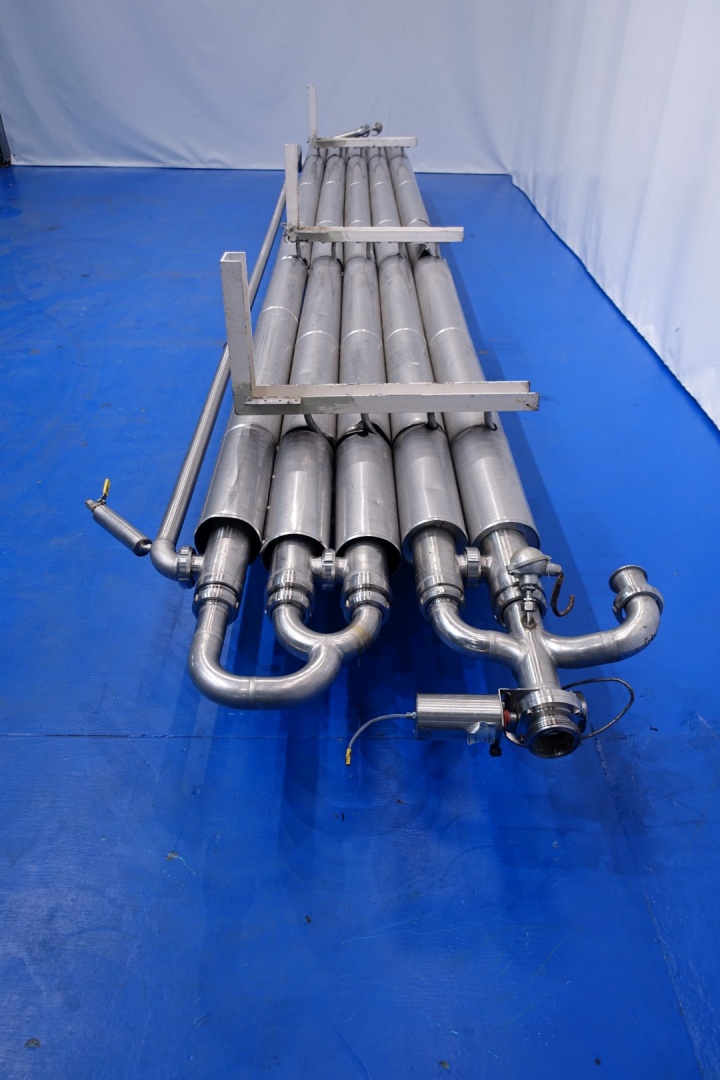

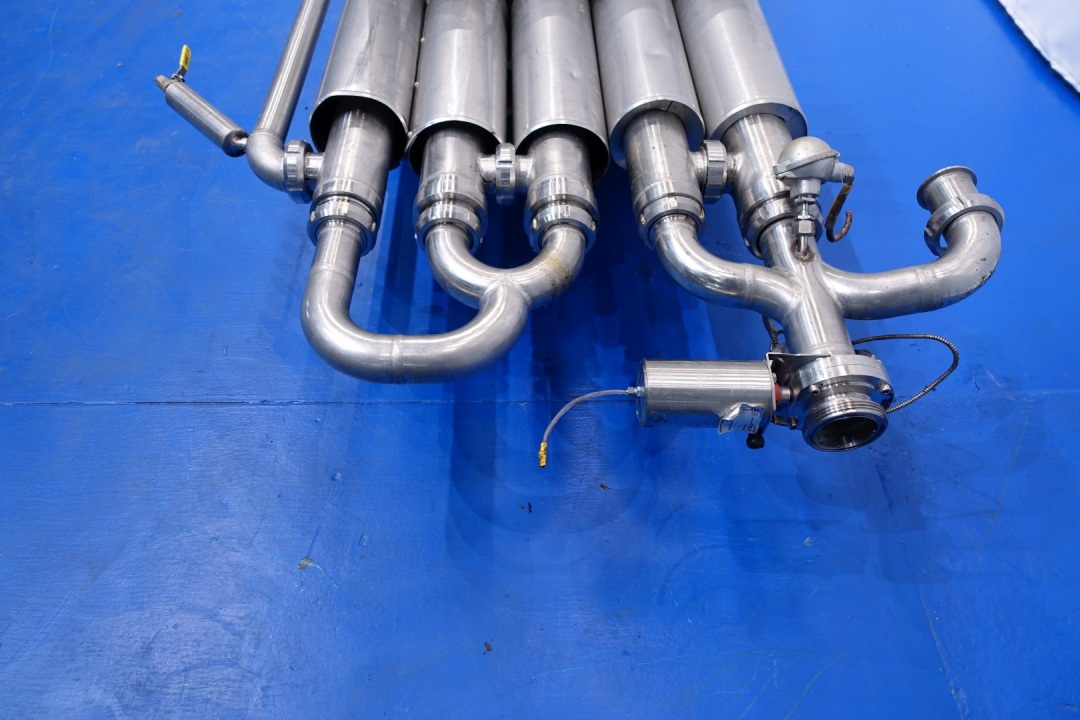

Double jacketed and insulated tubular tube heat exchanger. Set of 5 tubes. Multitube, scheme: 2 x 2 in parellel en 1 in serial. Effective length 6mtr. 4 Tubes outer diameter 105 mm and 1 outer diameter 115 mm. 4 Tubes with 7 inner tubes - diameter 22 mm and 1 Tube with 19 inner tubes diameter 13 mm. Total surface per tube (7x Ø22mm): 2,9 m2 and tube (19 Ø13mm): 4,65 m2. Total surface for complete set: 16,27 m2. Former used as remelt tube form margarine. Total dimensions: 680x135x63 (lxwxh) cm - weight: 580 kg.
