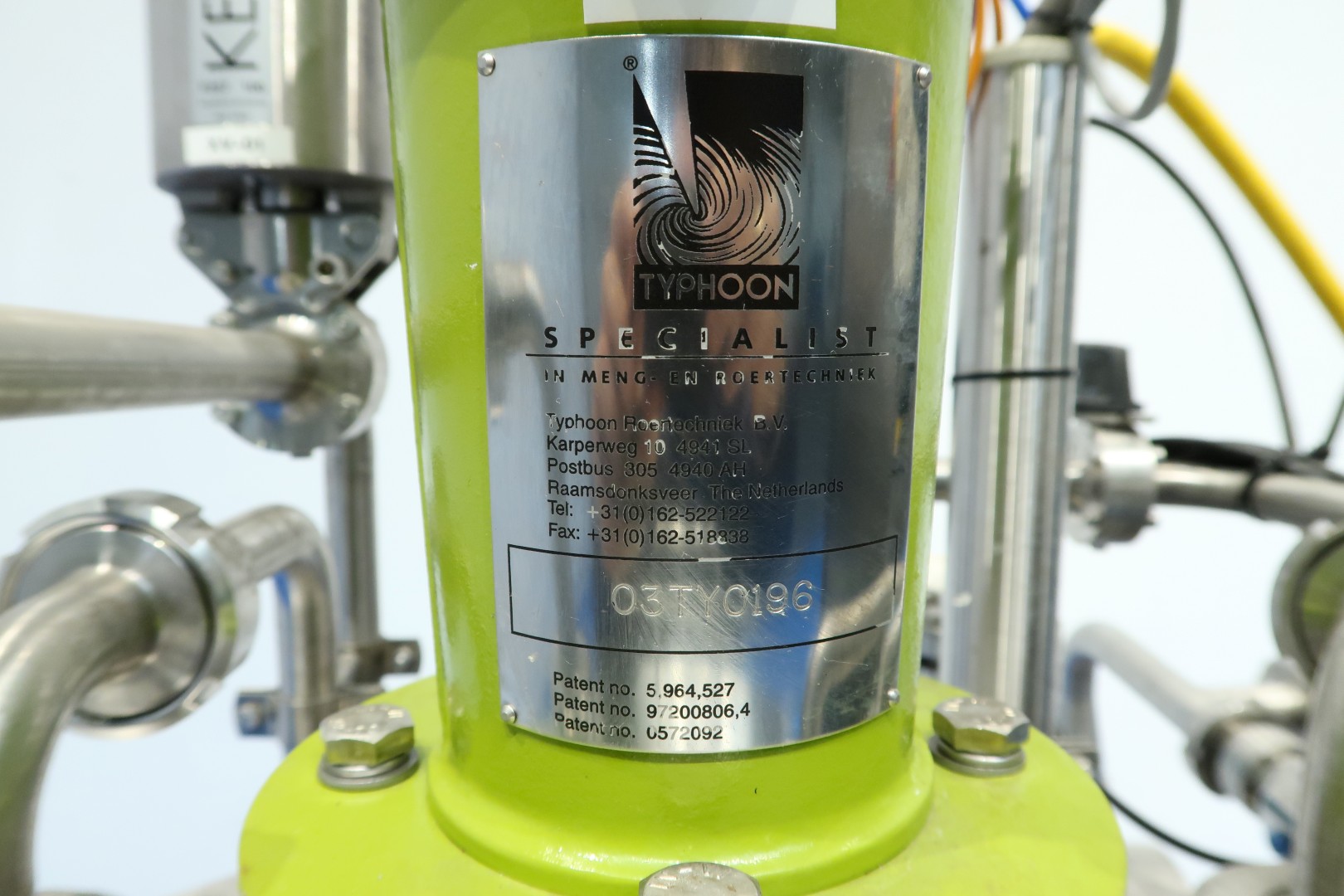

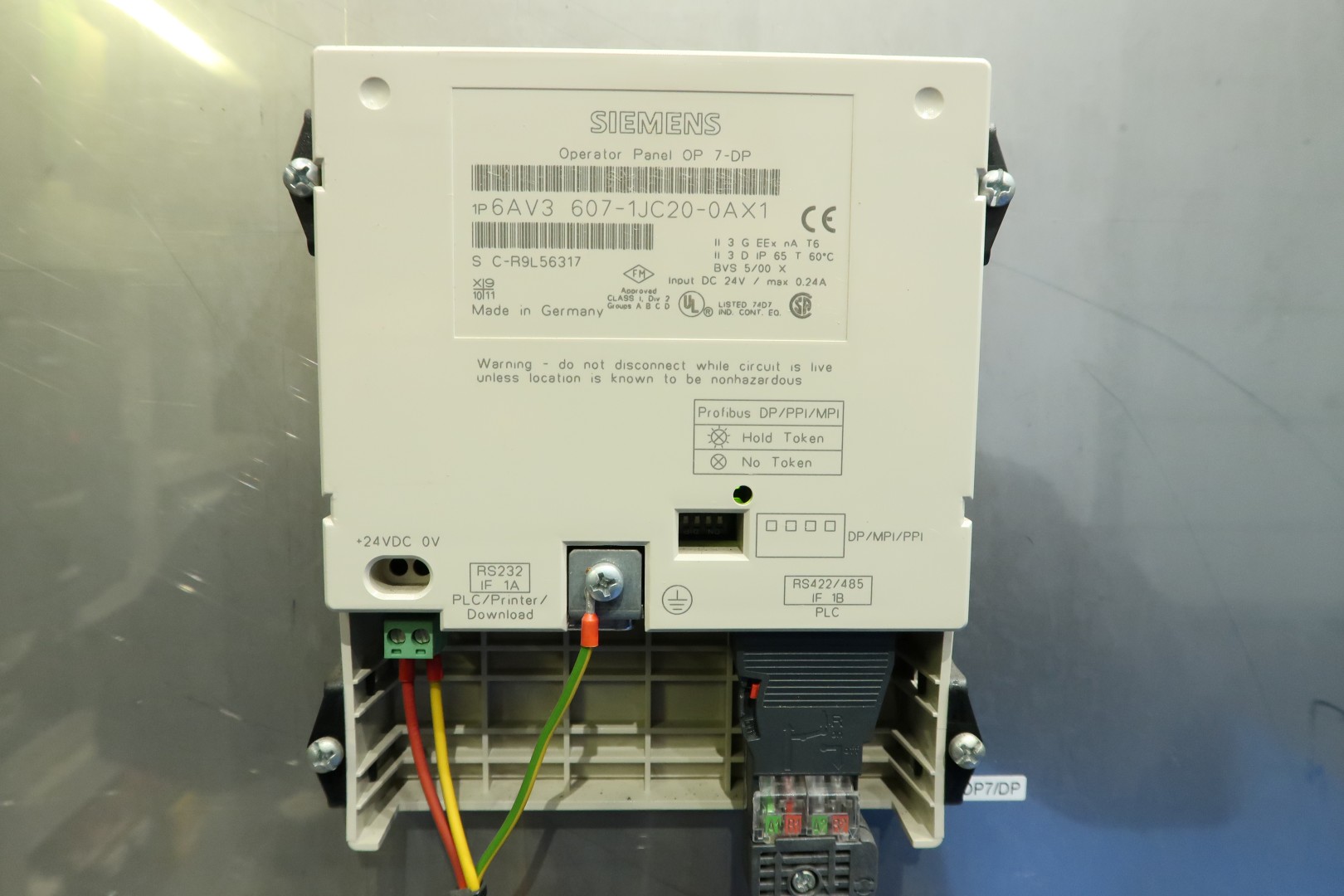

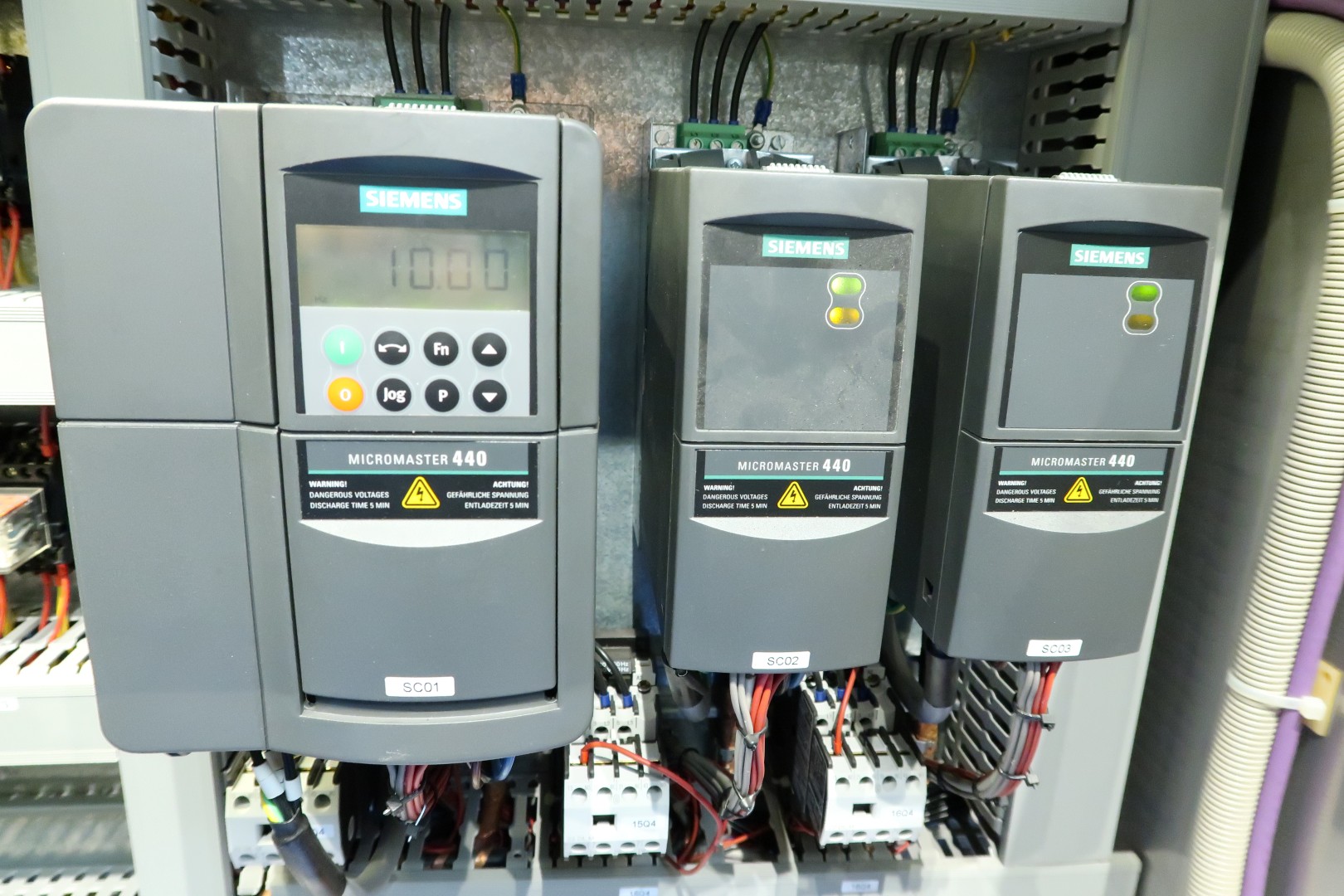

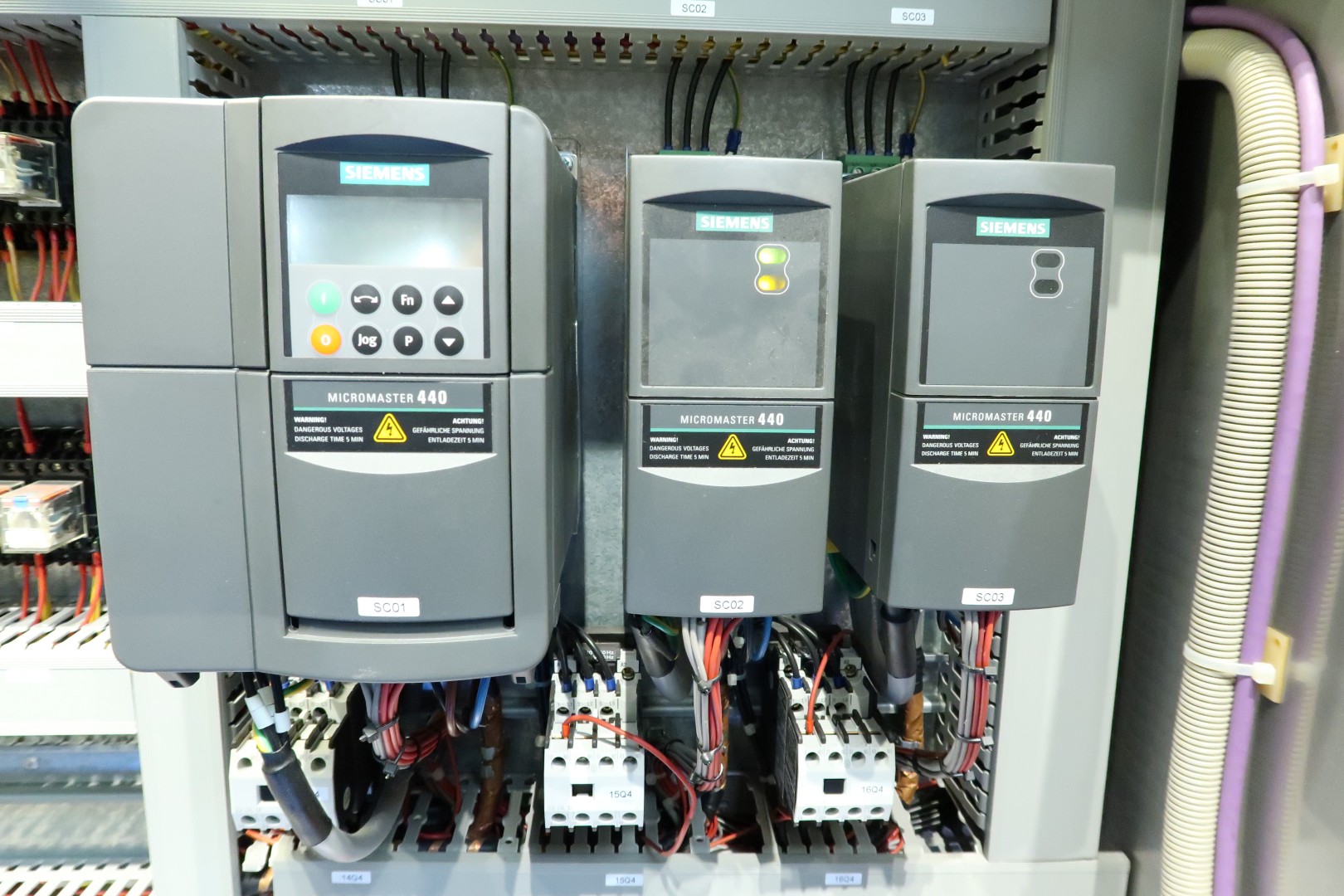

Pilot Filtration plant, Used for NF/RO Filters (but also MF/UF possible), Reverse Osmosis unit (prepared but without 8" filter housing). Build on mobile stainless steel frame with 4 x adjustable feet. Double jacketed balance vessel, capacity 100 liter with 2 x level sensor and 1 x temperature sensor with Typhoon 03TY0196 mixer (round blade) 0,44 kW- 1.690 rpm. With 3x E&H flowmeter. With Hydra-cell pump model G10XDS0SFEMB (high pressure up to 103 bar - viscosity 1.000 mPa.s - piston diaphragm pump - seal-less design). Motor of Hydra-cell pump: 3 kW - 7,2 A - 949 rpm - 50 Hz. With Samson steam valve and 2 x overpressure valve. Tube heat exchanger for retentate cooling via ice-water. With centrifugal high pressure circulation pump make: Pomac pump. With Simatic op7 operator panel. Controls Siemens Simatic S7-300 in e-panel 3x Siemens frequency converter and E&H data recorder. Documentation: electrical scheme available. Total dimensions: 200x140x203 (lxwxh) cm - weight: 695 kg.
