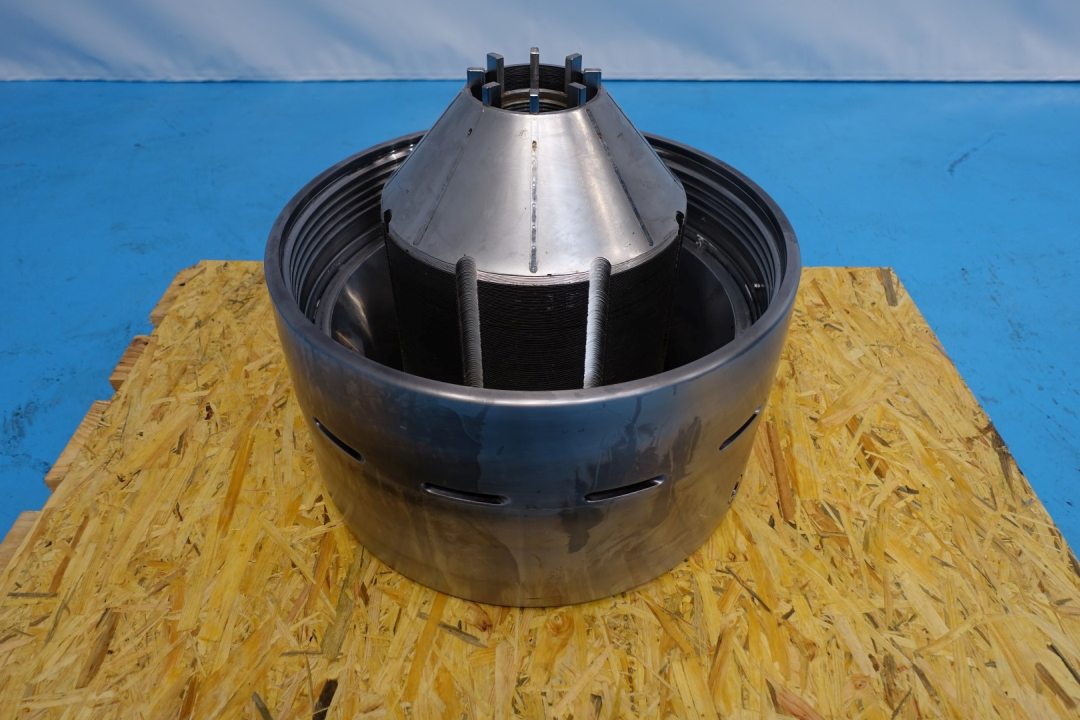

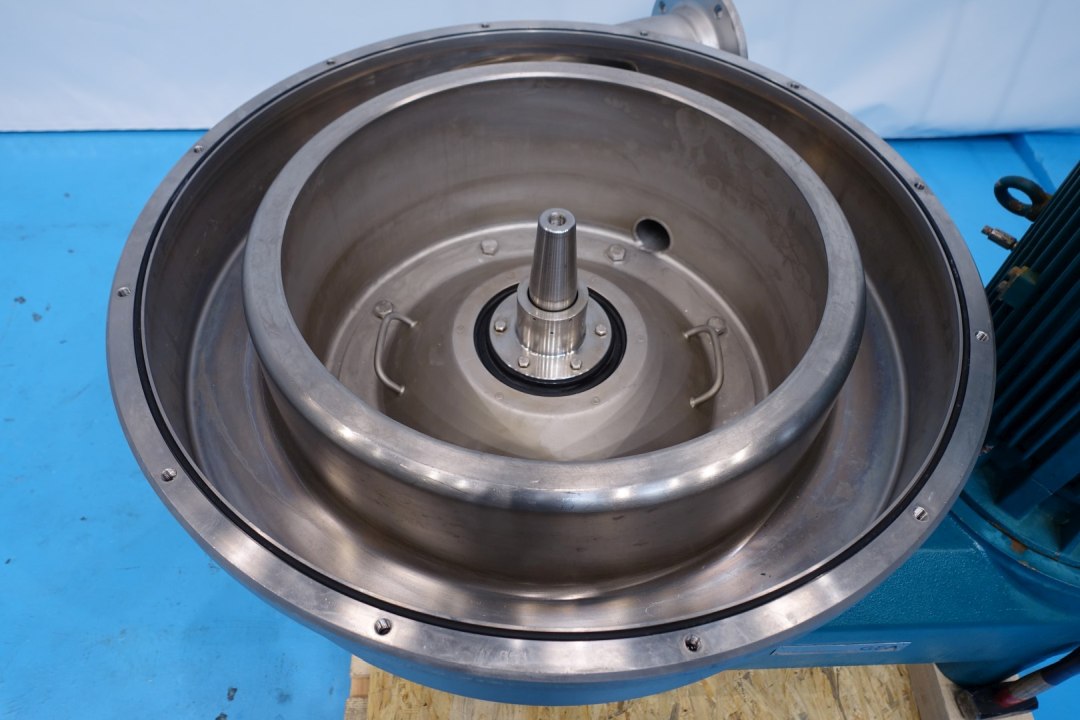

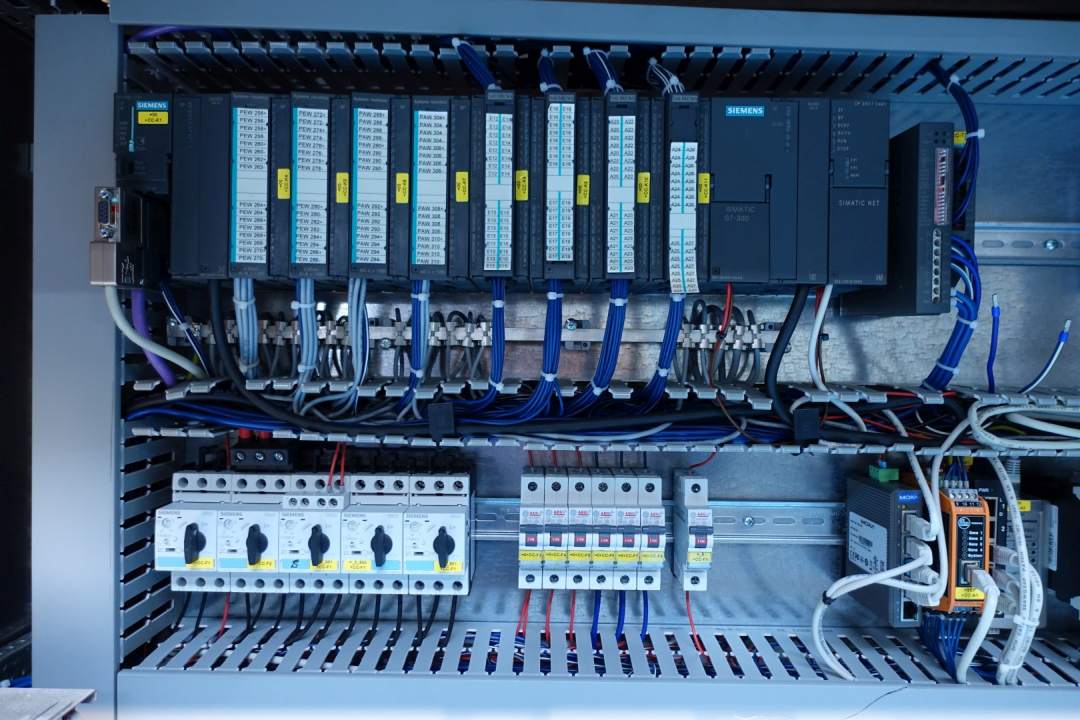

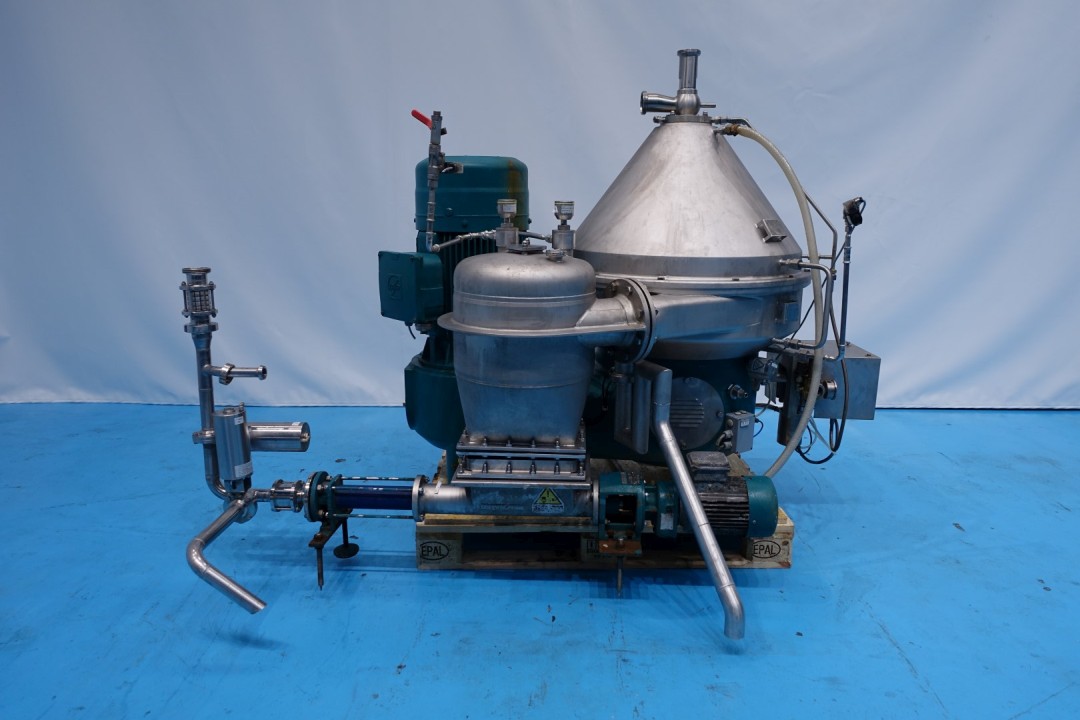

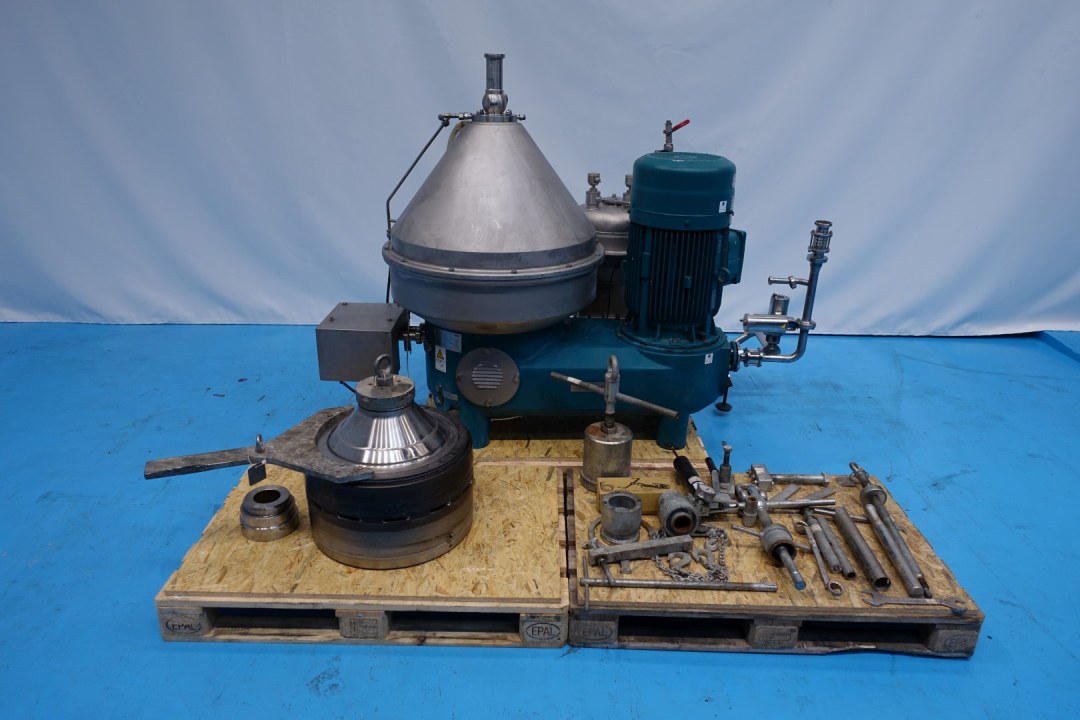

Beer separator - clarifier, self-cleaning. Including bowl, bowl speed: 7.250 rpm, motor cover, solids cyclone with a Seipec eccentric screw pulp outfeed pump, 3 x centrifugal pump, piping,co2 injection valve for blanketing, turbidity sensor , pressure transmitter, Vibro sensor. Flow transmitter, flow control valves, bypass valve, sampler on in and outlet. Maneuvering water valves. Set of needed tools with ring key and pressing tool. Free standing control panel with PLC Siemens Simatic S7-300 controls and frequency controllers of 2 pumps and separator. Centrifugal pump 1: GEA TP2050-200-2-E-K-E-GO-DN65/50-J-J, impellor 200 mm, connections In: 3,0" Din - Out: 2,5" Din. Centrifugal pump 2: GEA TP3050-150-2-E-K-E-GO-DN65/50-J-J, impellor 150 mm, connections In: 3,0" Din - Out: 2,5" Din. Centrifugal pump 3: NN, impellor 120 mm, connections In: 2 "Din - Out: 2" Din. Capacity: 10hl to 20hl/h. With documentation. Excluding: touchscreen in control panel, precooler PHE.
